相机供电及I/O线缆（M12-A公头型）
物理参数
基本参数 |
型号 |
CBL-PWR-M12A12-XX-5M CBL-PWR-M12A12-XX-15M |
CBL-PWR-M12A12-OPEN-5M CBL-PWR-M12A12-OPEN-15M |
|---|---|---|---|
产品类别 |
电源I/O线 |
||
颜色 |
黑 |
||
A端接头 |
M12-A，航空公头 |
||
B端接头 |
DC5.5母头 RJ45 6芯散线 |
RJ45 8芯散线 |
|
结构 |
线材结构 |
24AWG*3P+24AWG*8C+F |
|
线束直径 |
6.5mm |
||
外护套材质 |
PVC |
||
连接器耐久力 |
≥750次插拔循环 |
||
最小弯曲半径 |
65mm |
||
适用场景 |
动态 |
||
拖链次数 |
1000万次 |
||
包装方式 |
独立包装袋 |
||
硬件 |
最大工作电压 |
30V DC |
|
工作温度 |
-20~80℃ |
||
安全性 |
符合RoHS2.0标准 |
||
适用相机型号 |
AIC-Lite-016M-07M-W AIC-Lite-016M-16M-W |
||
尺寸
单位：mm
|

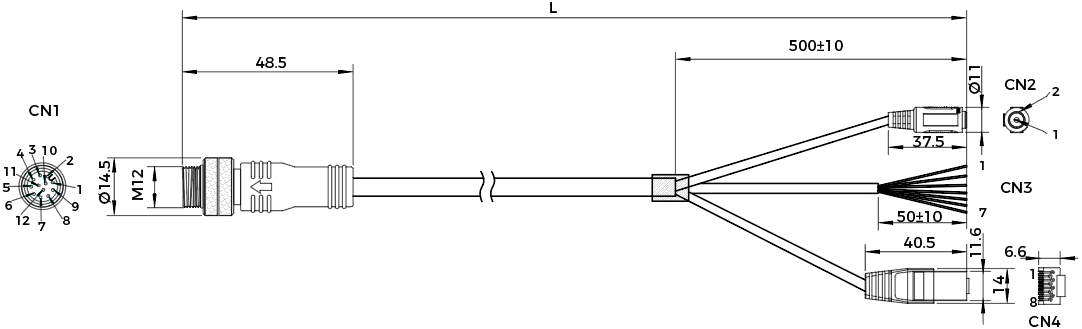

CBL-PWR-M12A12-XX |
|
CBL-PWR-M12A12-OPEN |
| 型号 | L | 公差 |
|---|---|---|
CBL-PWR-M12A12-XX-5M |
5m |
±50mm |
CBL-PWR-M12A12-XX-15M |
15m |
±150mm |
CBL-PWR-M12A12-OPEN-5M |
5m |
±50mm |
CBL-PWR-M12A12-OPEN-15M |
15m |
±150mm |
接头
| CBL-PWR-M12A12-XX-5M / CBL-PWR-M12A12-XX-15M | |||||
|---|---|---|---|---|---|
CN1 |
颜色 |
CN2 |
CN3 |
CN4 |
功能 |
1 |
红 |
1 |
- |
- |
VCC_EXTPWR |
2 |
黑 |
- |
7 |
- |
PGND |
4 |
紫白 |
- |
1 |
- |
OPT_GND |
5 |
黄 |
- |
2 |
- |
OPT_IN0 |
3 |
棕 |
- |
3 |
- |
OPT_OUT0 |
6 |
蓝 |
- |
4 |
- |
DIRECT_IO |
11 |
紫 |
- |
5 |
- |
RS232_RXD |
12 |
灰 |
- |
6 |
- |
RS232_TXD |
7 |
绿 |
- |
- |
6 |
MD1_P |
8 |
绿白 |
- |
- |
3 |
MD1_N |
9 |
橙 |
- |
- |
2 |
MD0_P |
10 |
橙白 |
- |
- |
1 |
MD0_N |
| CBL-PWR-M12A12-OPEN-5M / CBL-PWR-M12A12-OPEN-15M | ||||
|---|---|---|---|---|
CN1 |
颜色 |
CN2 |
CN3 |
功能 |
1 |
红 |
8 |
- |
VCC_EXTPWR |
2 |
黑 |
7 |
- |
PGND |
4 |
紫白 |
1 |
- |
OPT_GND |
5 |
黄 |
2 |
- |
OPT_IN0 |
3 |
棕 |
3 |
- |
OPT_OUT0 |
6 |
蓝 |
4 |
- |
DIRECT_IO |
11 |
紫 |
5 |
- |
RS232_RXD |
12 |
灰 |
6 |
- |
RS232_TXD |
7 |
绿 |
- |
6 |
MD1_P |
8 |
绿白 |
- |
3 |
MD1_N |
9 |
橙 |
- |
2 |
MD0_P |
10 |
橙白 |
- |
1 |
MD0_N |
