Search for, Add, and Delete Steps in Mech-MSR

You are currently viewing the documentation for version 2.1.0. To access documentation for other versions, click the "Switch Version" button located in the upper-right corner of the page.

■ To use the latest version, visit the Mech-Mind Download Center to download it.

■ If you're unsure about the version of the product you are using, please contact Mech-Mind Technical Support for assistance.

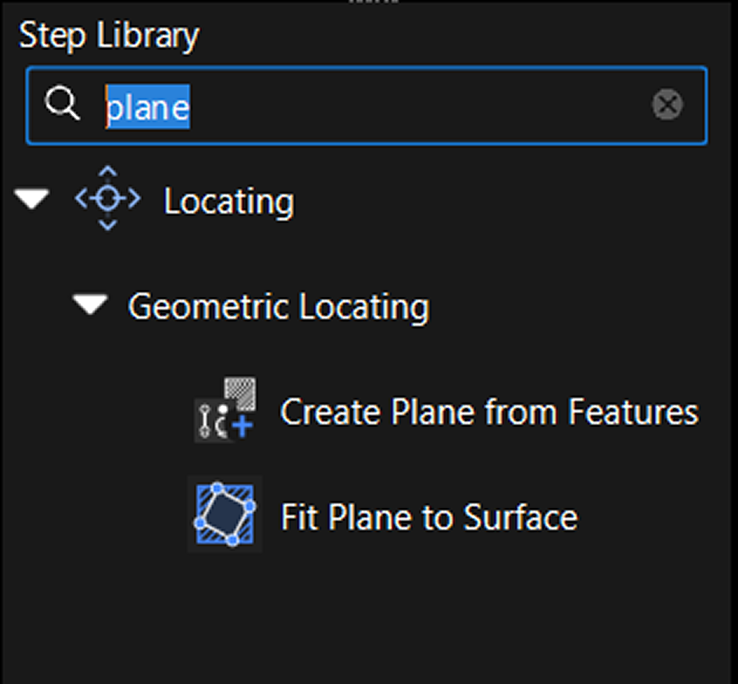

Use either of the following methods to search for a Step:

  • In the Step library’s search box, enter a keyword from the Step name.

    search steps
  • Expand and browse Step groups as needed to find the desired Step. For example, if you need to preprocess data, expand the Preprocessing category to see the available Steps.

    For more information about Steps, refer to Step List.

Add a Step to the Project

Select the Step and hold down the left mouse button. Drag it to any position in the graphical programming workspace, and then release to add the Step to the project.

add steps

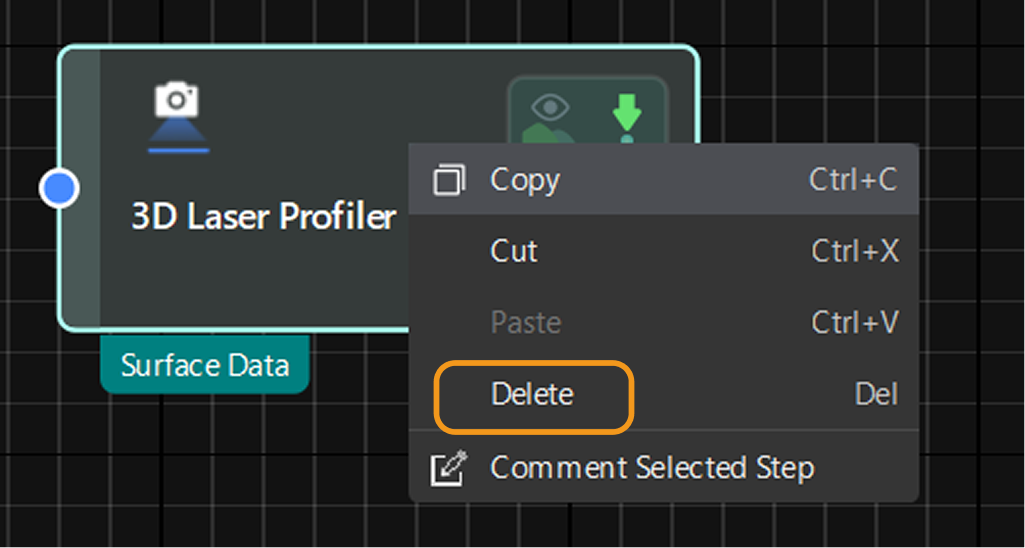

Delete a Step from the Project

Use either of the following methods to delete a Step from the project:

  • Select a Step in the graphical programming workspace and press the Delete key.

  • In the graphical programming workspace, right-click the Step and select Delete in the context menu.

    delete steps
