3D Camera Protective Shell

You are currently viewing the documentation for version 2.5.0. To access documentation for other versions, click the "Switch Version" button located in the upper-right corner of the page.

■ To use the latest version, visit the Mech-Mind Download Center to download it.

■ If you're unsure about the version of the product you are using, please contact Mech-Mind Technical Support for assistance.

Package Contents

Protective shell (3D-PS-N04-A)

Pressure control valve

M3 × 8 socket head cap screws (Qty: 4)

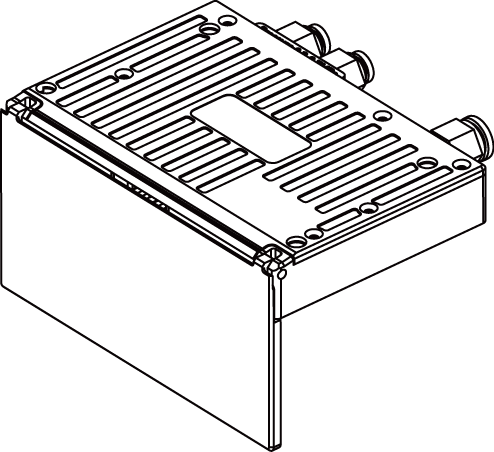

protective shell
pressure control valve
screw m3 8
Before using, please make sure that the package is intact, the protective shell is not damaged, and no accessories are missing. Please contact Mech-Mind if any items are damaged or missing.

Mounting

Before mounting, please prepare a hex key.

As shown below, place the protective shell on the camera and the four screws in the holes, and then tighten the screws with the hex key. The recommended tightening torque is 0.5 to 0.7 N·m.

shell mounting
The protective shell and the 3D camera lens protector (3D-LP-N04-A) can be mounted onto the camera at the same time.

Pneumatic Connections

pneumatic connections
Please prepare the pneumatic tubes and the solenoid valve.

Dimensions (Including Camera)

Protective Shell Closed

dimension shell closed

Protective Shell Opened

dimension shell opened

Specifications

Model

3D-PS-N04-A

Air Cooling pneumatic connector

Diameter

8 mm

Pressure

0.3–0.7 MPa

Diameter of Open and Close pneumatic connectors

4 mm

Pressure control valve

Pneumatic connector diameter

6 mm

Pressure

0.2–0.3 MPa

Can be used with

NANO ULTRA-GL
