Mech-Mind IPC PRO User Manual
Preface
This user manual applies to the industrial PCs (IPCs) of the Mech-Mind IPC PRO model.
The IPCs of the Mech-Mind IPC PRO model can be purchased with the following order numbers:
-
IPCW-i5-32G-256G+1T-3060-EU
-
IPCW-i5-32G-256G+1T-3060-US
-
IPCW-i5-32G-256G+1T-3060-UK
-
IPCW-i5-32G-256G+1T-3060-JP
-
IPCW-i5-32G-256G+1T-3060-KR
1. Safety Instructions
-
To ensure safe use, please do not use the product before reading this manual and becoming familiar with the correct usage. Improper use and maintenance may damage the product or cause other hazards. Mech-Mind shall not be liable for any injury or damage brought upon the user or any third party due to improper use and maintenance.
-
Following the instructions and warnings in this manual can lower risks, but cannot eliminate all risks.
-
Every step has been inspected during the drafting of this user manual. Please do not hesitate to contact Mech-Mind if you find any problems or mistakes in the manual.
-
This product is to be mounted, connected, used and maintained by trained adults only. To ensure safe operation, the product should be transported, stored, mounted, connected, used and maintained properly.
-
The precautions outlined in this section shall be strictly observed. Failure to follow these precautions may result in damage to the Mech-Mind IPC PRO series.
1.1. General Safety Precautions
Follow the safety precautions outlined below:
-
Make sure to follow these general principles.
-
Make sure the power is turned off and the power cord is disconnected when moving, installing, or modifying the system.
-
Do not apply voltage levels that exceed the specified voltage range. Doing so may cause a fire and/or electric shock.
-
An electric shock may occur if the power is still on.
-
Do not put any object down or insert any object into the vent.
-
If a large amount of dust, water, or liquid enters the system, turn off the power immediately, unplug the power cord, and contact the system supplier.
-
Do not drop the device on a hard surface.
-
Do not use the device in locations where the ambient temperature exceeds the rated temperature.
2. Technical Specifications
| Model | Mech-Mind IPC PRO |
|---|---|
Configuration |
|
CPU |
Intel Core i5-12400 2.5GHz (6 cores) |
Chipset |
Intel® H610 |
Memory |
32G DDR4 2666MHz dual-channel |
GPU card |
GeForce® RTX 3060 |
Storage |
256 GB SSD + 1 TB HDD 5400r/s |
Operating system |
Windows 10 IoT Enterprise LTSC 2021 |
Wireless network |
NA |
Switches |
1 x POWER switch 1 x RESET switch |
External interfaces |
|
Network ports |
1 x 1 GbE 1 x 2.5 GbE |
USB ports |
2 x USB 3.2 GEN1 2 x USB 3.2 GEN2 4 x USB 2.0 |
Serial ports |
2 x RS232/422/485 |
Digtal IO |
NA |
Display interfaces |
1 x HDMI (up to 4096 x 2304 @ 30Hz) 1 x DP (up to 4096 x 2304 @ 60Hz) |
Mechanical features |
|
Dimensions |
484 mm x 435.5 mm x 176 mm |
Weight (net/gross) |
13.2 kg/17.1 kg |
Electronics |
|
Power supply |
AC Input: 100-240 V AC, 5-10 A, 50-60 Hz (ErP/EuP compliant) |
Rated output power |
750 W |
Environmental |
|
Operating environment |
Operating temperature: -10°C to 60°C; humidity: 5% to 95%; non-condensing |
Storage environment |
Operating temperature: -30°C to 70°C; humidity: 5% to 95%; non-condensing |
Safety & Certification |
|
Certification |
CE/FCC/VCCI/KC/NRTL |
Warranty |
|
Warranty period |
One year |
|
For more information about certification, please contact Mech-Mind Technical Support. |
3. Product Overview
3.1. Overview
The Mech-Mind IPC PRO series is powered by 12th Gen Intel® processor and H610 chipset. The system is bundled with 32 GB DDR4 memory, 256 GB SSD + 1 TB HDD storage and GeForce® RTX 3060 GPU card, and supports operating in -10°C to 60°C.
3.2. Product Views
3.2.1. Front View
The following figure shows the front panel of the Mech-Mind IPC PRO series and the interfaces on it.
| No. | Description | No. | Description |
|---|---|---|---|
1 |
POWER LED |
2 |
HDD LED* |
3 |
2 x USB ports |
4 |
RESET button (switch) |
5 |
POWER switch |
| When the IPC is powered on, the HDD LED should blink, indicating that the hard drive is performing read/write operations. |
3.2.2. Rear View
The following figure shows the rear panel of the Mech-Mind IPC PRO series and the interfaces on it.
| No. | Description | No. | Description |
|---|---|---|---|
1 |
POWER switch |
2 |
Power connector |
3 |
2 x RS232/422/485 |
4 |
1 x DP port |
5 |
1 x HDMI port |
6 |
1 x 1 GbE (left), 1 x 2.5 GbE (right) |
7 |
2 x USB 3.2 GEN1 |
8 |
2 x USB 3.2 GEN2 |
9 |
4 x USB 2.0 |
10 |
1 x iDPM slot |
4. Installation
4.1. Unpacking Checklist
| If some of the components listed in the checklist below are missing, please do not proceed with the installation and contact Mech-Mind Technical Support. |
The Mech-Mind IPC PRO series is shipped with the following components:
| No. | Item | Quantity | Schematic diagram |
|---|---|---|---|
1 |
Mech-Mind IPC PRO |
1 |
|
2 |
Handler |
2 |
|
3 |
Power cord |
1 |
|
4 |
Handler mounting screw |
8 |
|
5 |
Rail mounting screw |
8 |
|
4.2. Installation Precautions
Before installing the Mech-Mind IPC PRO series, please pay attention to the following precautions:
-
Read the user manual: The user manual provides a complete description of the Mech-Mind IPC PRO series, installation instructions and configuration options.
-
DANGER! Disconnect power: Power to the Mech-Mind IPC PRO series must be disconnected during the installation process, or before any attempt is made to access the rear panel. Electric shock and personal injury might occur if the rear panel of the Mech-Mind IPC PRO series is opened while the power cord is still connected to an electrical outlet.
-
Qualified personnel: The Mech-Mind IPC PRO series must be installed and operated only by trained and qualified personnel. Maintenance, upgrades, or repairs may only be carried out by qualified personnel who are familiar with the associated dangers.
-
Air circulation: Make sure there is sufficient air circulation when installing the Mech-Mind IPC PRO series. The Mech-Mind IPC PRO series' cooling vents must not be obstructed by any objects. Leave at least 5 cm of clearance around the Mech-Mind IPC PRO series to prevent overheating.
-

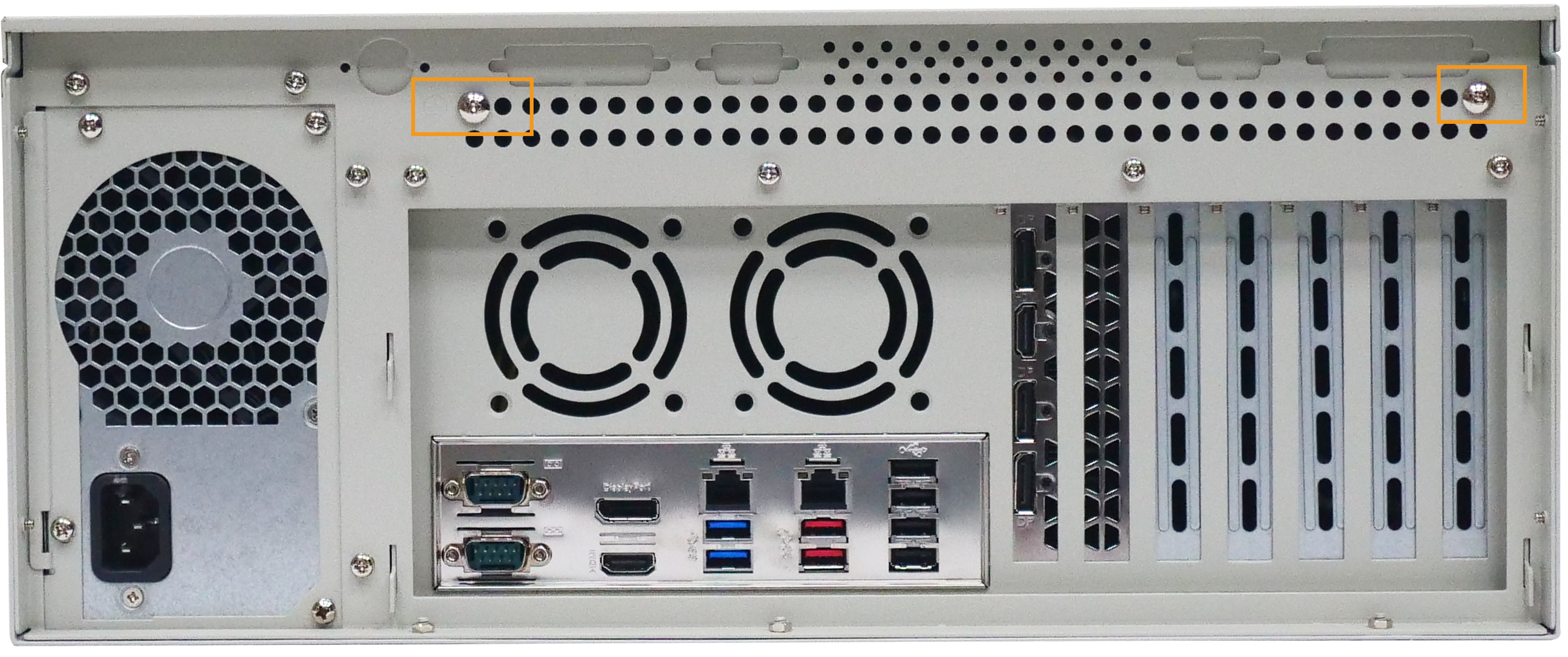

Grounding: The Mech-Mind IPC PRO series should be properly grounded. The voltage feeds must not be overloaded. Adjust the cabling and provide external overcharge protection per the electrical values indicated on the label attached to the panel of the Mech-Mind IPC PRO series.
4.3. Mount the System with the Handlers
To mount the system onto a rack using the two handlers, please follow the steps below.
-
Align the mounting holes in the handlers with the corresponding retention screw holes on the side surface of the case.
-
Secure the handlers to the system by inserting retention screws into each handler.
-
Align the mounting holes in the front of the handlers with the mounting holes on a rack.
-
Use eight screws to secure the system to the rack.
5. External Interface Description
5.1. Power Connector
There is one power connector on the rear panel. The power connector is a 3-pin terminal that can directly connect to a power adapter. The supported power input voltages are 100 V to 240 V.
The power LED indicator on the front panel indicates the status of the power.
| Power LED indicator | Description |
|---|---|
Off |
No power supply |
Solid green |
Power-on mode |
5.2. Ethernet Ports
The Ethernet ports allow the IPC to connect to an external network.
To connect the IPC to an external network, follow these steps:
-
Locate the Ethernet ports on the IPC.
-
Align the RJ-45 connector on the Ethernet cable with one of the Ethernet ports.
-
Insert the RJ-45 connector on the Ethernet cable into the Ethernet port.
Each Ethernet port on the IPC has two status light-emitting diodes (LEDs), one green and one yellow. The yellow LED indicates the link status or the activity of the port and the green LED indicates the connection speed of the port.
The following table shows the LED status of the 2.5 GbE Ethernet port.
| LED | Status | Description |
|---|---|---|
Activity/Link LED (yellow) |
Off |
No link |
Yellow |
Linked |
|
Blinking |
Data is being sent/received |
|
Speed LED (green) |
Off |
100 Mbps connection |
Orange |
1 Gbps connection |
|
Green |
2.5 Gbps connection |
The following table shows the LED status of the 1 GbE Ethernet port.
| LED | Status | Description |
|---|---|---|
Activity/Link LED (yellow) |
Off |
No link |
Yellow |
Linked |
|
Blinking |
Data is being sent/received |
|
Speed LED (green) |
Off |
10 Mbps connection |
Orange |
100 Mbps connection |
|
Green |
1 Gbps connection |
6. Maintenance and Cleaning
When maintaining or cleaning the Mech-Mind IPC PRO series, please follow the guidelines below.
6.1. Cleaning Precautions
Prior to cleaning any part or component of the Mech-Mind IPC PRO series, please read the details below.
-
The interior of the Mech-Mind IPC PRO series does not require cleaning. Keep fluids away from the Mech-Mind IPC PRO series interior.
-
Be cautious of all small removable components when vacuuming the Mech-Mind IPC PRO series.
-
Turn the Mech-Mind IPC PRO series off before cleaning the Mech-Mind IPC PRO series.
-
Never drop any objects or liquids through the openings of the Mech-Mind IPC PRO series.
-
Be cautious of any possible allergic reactions to solvents or chemicals used when cleaning the Mech-Mind IPC PRO series.
-
Avoid eating, drinking and smoking within the vicinity of the Mech-Mind IPC PRO series.
6.2. Cleaning Tools
Some components in the Mech-Mind IPC PRO series may only be cleaned using a product specifically designed for the purpose. In such cases, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the Mech-Mind IPC PRO series.
-
Cloth - Although paper towels or tissues can be used, a soft, clean piece of cloth is recommended when cleaning the Mech-Mind IPC PRO series.
-
Water or rubbing alcohol - A cloth moistened with water or rubbing alcohol can be used to clean the Mech-Mind IPC PRO series.
-
Using solvents - The use of solvents is not recommended when cleaning the Mech-Mind IPC PRO series as they may damage the plastic parts.
-
Vacuum cleaner - Using a vacuum cleaner specifically designed for computers is one of the best methods of cleaning the Mech-Mind IPC PRO series. Dust and dirt can restrict the airflow in the Mech-Mind IPC PRO series and cause its circuitry to corrode.
-
Cotton swabs - Cotton swaps moistened with rubbing alcohol or water are excellent tools for wiping hard-to-reach areas.
-
Foam swabs - Whenever possible, it is best to use lint-free swabs such as foam swabs for cleaning.
7. Troubleshooting
| Symptom | Solution |
|---|---|
Blue screen appeared frequently on IPC |
Please follow the steps below to re-install the operating system.
|
Insufficient space on the IPC |
|
8. Obtain Support
If you need technical support, please contact Mech-Mind Technical Support in any of the following means:
-
Email: service@mech-mind.net
-
Community: Mech-Mind Online Community
Appendix A: Error Beep Codes During Start
A.1. PEI Beep Codes
| Number of Beeps | Description |
|---|---|
4 |
Memory not Installed. |
1 |
Memory was installed twice. (InstallPeiMemory routine in PEI Core called twice) |
2 |
Recovery started. |
3 |
DXEIPL was not found. |
3 |
DXE Core Firmware Volume was not found. |
4 |
Recovery failed. |
4 |
S3 Resume failed. |
7 |
Reset PPI is not available. |
A.2. DXE Beep Codes
| Number of Beeps | Description |
|---|---|
1 |
Invalid password. |
4 |
Some of the Architectural Protocols are not available. |
5 |
No Console Output Devices are found. |
5 |
No Console Input Devices are found. |
6 |
Flash update failed. |
7 |
Reset protocol is not available. |
8 |
Platform PCI resource requirements cannot be met. |
Appendix B: Hazardous Material Disclosure
The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presence of small quantities of certain substances in the product and applies to RoHS II Directive (2015/863/EU).
Please refer to the following table.
