Mech-Mind IPC ADV User Manual

Preface

This user manual applies to the industrial PCs (IPCs) of the Mech-Mind IPC ADV series.

ipc adv

The Mech-Mind IPC ADV series supports the following models:

  • IPCW-i5-16G-512G-1660S-EU

  • IPCW-i5-16G-512G-1660S-US

  • IPCW-i5-16G-512G-1660S-UK

  • IPCW-i5-16G-512G-1660S-JP

  • IPCW-i5-16G-512G-1660S-KR

1. Safety Instructions

  • To ensure safe usage, please do not use the product until you have read this user manual and understand how to use the product correctly. Failure to follow the instructions for use and maintenance in this manual may result in damage to the IPC, personal injury, or any loss to third parties.

  • Following the warnings and precautions in this manual can effectively reduce risks, but it cannot eliminate all risks.

  • The content of this user manual has been reviewed, and each step has been carefully checked during the writing process. If you find any questions or errors, please feel free to contact Mech-Mind.

  • This product must be installed, connected, used, and maintained by qualified professionals. Please ensure proper transportation, storage, installation, connection, usage, and maintenance to guarantee the safe operation of the product.

General Safety Precautions

Follow the safety precautions outlined below:

  • Be sure to comply with the general safety guidelines for the location where this product is used.

  • When moving, installing, or maintaining this product, ensure that the power supply and power cables are disconnected.

  • Do not use voltage exceeding the rated voltage range, as it may result in incidents such as fire or electric shock.

  • If a large amount of dust, water, or other liquids enters the product, immediately disconnect the power supply, unplug the power cable, and contact Mech-Mind.

  • Do not drop this product onto hard surfaces.

  • Do not use this product in environments where the temperature exceeds the rated temperature.

2. Technical Specifications

Product Mech-Mind IPC ADV

Model

  • IPCW-i5-16G-512G-1660S-EU

  • IPCW-i5-16G-512G-1660S-US

  • IPCW-i5-16G-512G-1660S-UK

  • IPCW-i5-16G-512G-1660S-JP

  • IPCW-i5-16G-512G-1660S-KR

Configuration

CPU

Intel Core i5-12400 2.5 GHz

Memory

16 GB DDR4

GPU card

GeForce® GTX 1660S

Storage

512 GB SSD

Operating system

Windows 10 IoT Enterprise LTSC

Wireless network

NA

Switches

1 x POWER switch
1 x RESET switch

External interfaces

Network ports

1 x 1 GbE
1 x 2.5 GbE

USB ports

2 x USB 3.2 GEN1
2 x USB 3.2 GEN2
6 x USB 2.0

Serial ports

2 x RS232/422/485

Digtal IO

NA

Display interfaces

HDMI/DP

Mechanical features

Dimensions

484 mm x 435.5 mm x 176 mm

Weight (net)

About 13 kg

Electronics

Power supply

AC Input: 100–240 V AC, 5–10 A, 50–60 Hz

Rated power

500 W

Environmental

Operating environment

Operating temperature: -10°C to 40°C; humidity: 5% to 95%; non-condensing

Operating temperature: 40°C to 55°C; humidity: 0% to 50%; non-condensing

Storage environment

Storage temperature: -20°C to 60°C; humidity: 5% to 95%; non-condensing

Safety & Certification

Certification

CE/FCC/VCCI/KC/NRTL

Warranty

Warranty period

One year

For more information about certification, please contact Mech-Mind Technical Support.

3. Product Overview

3.1. Overview

This product is powered by a 12th-generation Intel Core processor. This product is bundled with 16 GB DDR4 3200MHz memory, 512 GB SSD storage, and GeForce® GTX 1660S GPU card, and supports operating in -10°C to 55°C.

3.2. Product Views

3.2.1. Front View

The following figure shows the front panel of this product and the interfaces on it.

ipc adv front view
No. Description No. Description

1

POWER LED

2

Hard drive LED*

3

2 x USB ports

4

RESET button (switch)

5

POWER switch

When the IPC is powered on, the hard drive LED should blink, indicating that the hard drive is performing read/write operations.

3.2.2. Rear View

The following figure shows the rear panel of this product and the interfaces on it.

ipc adv rear view
No. Description No. Description

1

Power connector

2

2 x RS232/422/485

3

1 x DP port1

4

1 x HDMI port1

5

1 x 1 GbE (left), 1 x 2.5 GbE (right)

6

2 x USB 3.2 GEN1

7

2 x USB 3.2 GEN2

8

6 x USB 2.0

9

1 x HDMI port, 3 x DP ports2

  1. After inserting a discrete graphics card into the IPC, the integrated graphics on the motherboard will be disabled. Therefore, the HDMI and DP ports corresponding to number 3 and 4 will be unavailable.

  2. When connecting a monitor to the IPC, please use an HDMI or DP port corresponding to number 9. These ports are provided by the discrete graphics card and support higher resolutions and refresh rates.

3.3. Mechanical Dimensions & Mounting Holes

ipc adv dimensions

Dimensional units: mm

4. Installation

4.1. Unpacking Checklist

If some of the components listed in the checklist below are missing, please do not proceed with the installation and contact Mech-Mind Technical Support.

This product is shipped with the following components:

No. Item Quantity Illustration

1

Mech-Mind IPC ADV

1

ipc adv

2

Handler

2

ipc adv handler

3

Power cord

1

ipc adv power cord

Note that the power cords sold in different regions vary.

4

Handler mounting screw

8

ipc adv handler screws

5

Rail mounting screw

8

ipc adv rail screws

4.2. Installation Precautions

Before installing this product, please pay attention to the following installation precautions:

  • Read the user manual: The user manual for this product provides detailed instructions on installation and configuration options. Please read it before installation.

  • DANGER! Disconnect power: Ensure that the power to the IPC is completely disconnected during the installation process. Failure to do so may result in electric shock or personal injury.

  • Qualified personnel: This product must be installed by qualified professionals.

  • Air circulation: When installing this product, ensure there is adequate airflow. The cooling ventilation openings of this product must not be obstructed. Leave at least a 5 cm gap around the product to prevent overheating.

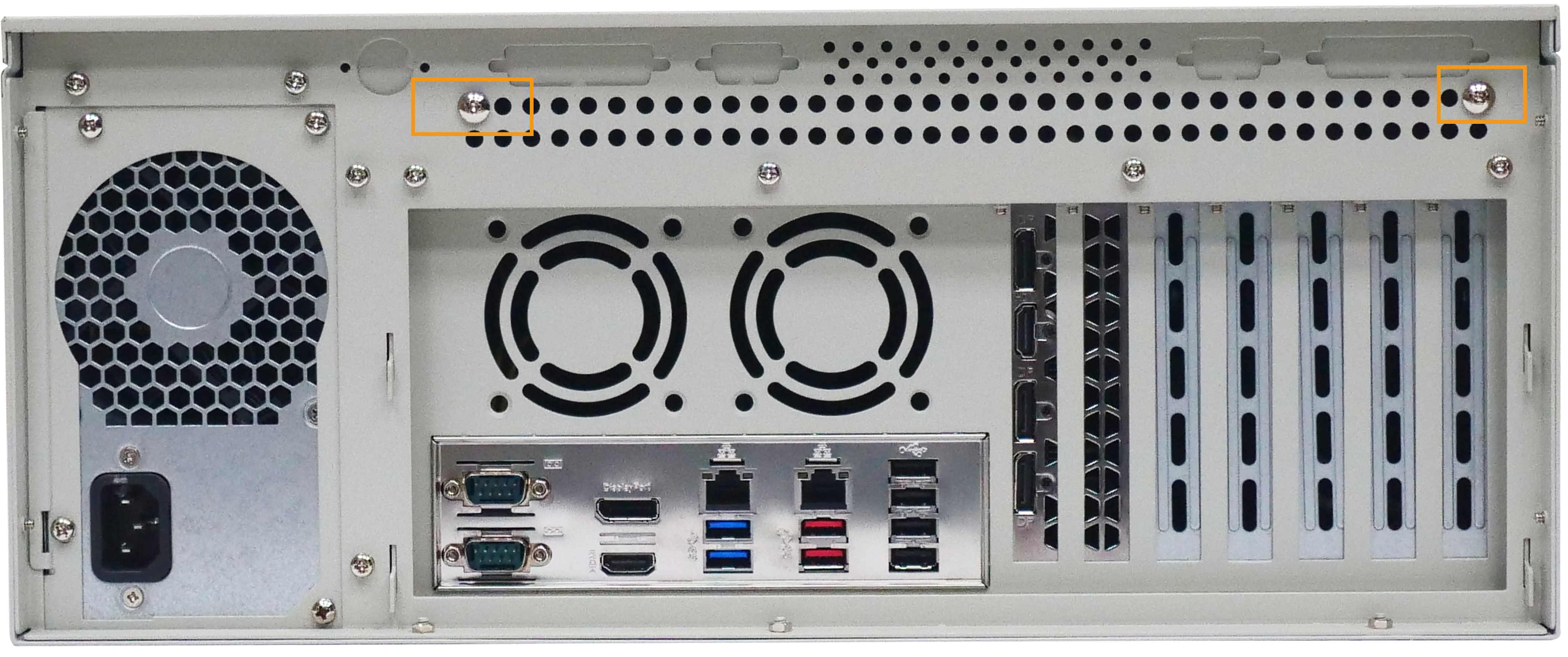

  • Grounding: This product must be properly grounded.

4.3. Mount the IPC with the Handlers

To mount the IPC onto a rack using the two handlers, please follow the steps below.

  1. Align the mounting holes in the handlers with the corresponding retention screw holes on the side surface of the IPC.

  2. Secure the handlers to the IPC by inserting the handler mounting screw into each handler.

    ipc adv mounting handler
  3. Align the mounting holes in the front of the handlers with the mounting holes on a rack.

  4. Use screws (prepared by yourself) to secure the IPC to the rack.

    ipc adv mounting system

5. External Interface Description

5.1. Power Connector

There is one power connector on the rear panel. The power connector is a 3-pin terminal that can directly connect to a 100–240 V AC power supply through the power cord.

ipc adv power connector

After the power connecter is connected to the power supply, the power LED indicator on the front panel indicates the status of the power.

Power LED indicator Description

Off

No power supply

Solid green

Power-on mode

5.2. Ethernet Ports

The Ethernet ports allow the IPC to connect to an external network.

To connect the IPC to an external network, follow these steps:

  1. Locate the Ethernet ports on the IPC.

  2. Align the RJ45 connector on the Ethernet cable with one of the Ethernet ports.

  3. Insert the RJ45 connector on the Ethernet cable into the Ethernet port.

ipc adv ethernet port

Each Ethernet port on the IPC has two status light-emitting diodes (LEDs). The Activity/Link LED indicates the link status or the activity of the port and the Speed LED indicates the connection speed of the port.

The following table shows the LED status of the 2.5 GbE Ethernet port.

LED Status Description

Activity/Link LED

Off

No link

Yellow

Linked

Blinking

Data is being sent/received

Speed LED

Off

100 Mbps connection

Orange

1 Gbps connection

Green

2.5 Gbps connection

The following table shows the LED status of the 1 GbE Ethernet port.

LED Status Description

Activity/Link LED

Off

No link

Yellow

Linked

Blinking

Data is being sent/received

Speed LED

Off

10 Mbps connection

Orange

100 Mbps connection

Green

1 Gbps connection

5.3. Digital I/O Connector

No digital I/O connectors are provided.

5.4. DB9 RS232/422/485 Serial Port Connector

The following figure shows the RS232/422/485 connector pins.

ipc adv db9 connector
Pin No. RS232 RS422 RS485

1

DCD

TXD422-

TXD485-

2

RXD

TXD422+

TXD485+

3

TXD

RXD422+

4

DTR

RXD422-

5

GND

6

DSR

7

RTS

8

CTS

9

RI

6. Maintenance and Cleaning

When maintaining or cleaning this product, please follow the guidelines below.

6.1. Cleaning Precautions

Please read the following instructions carefully before cleaning any parts or components of this product:

  • The interior of this product does not require cleaning. Avoid allowing liquids to enter the interior of the product.

  • When using a vacuum cleaner to clean the product, be cautious with all removable small components.

  • Disconnect the power supply before cleaning this product.

  • When cleaning this product, avoid using solvents or chemicals that may cause allergic reactions.

  • Do not eat or smoke around this product.

6.2. Cleaning Tools

Some components of this product can only be cleaned using specialized tools. Below is a list of items to be used when cleaning this product.

  • Cloth - Use a soft, clean cloth to clean this product.

  • Water or rubbing alcohol - A cloth moistened with water or rubbing alcohol can be used to wipe the product.

  • Vacuum cleaner - Using a vacuum cleaner specifically designed for cleaning computers is one of the best methods to clean this product.

  • Cotton swabs - Cotton swaps moistened with rubbing alcohol or water are excellent tools for cleaning hard-to-reach areas. It is recommended to use cotton swabs that do not shed fibers, such as foam swabs, for cleaning.

7. Troubleshooting

Content is under construction. If you need more information, please visit Mech-Mind Online Community.

8. Obtain Support

If you need technical support, please contact Mech-Mind Technical Support in any of the following means:

Appendix A: Error Beep Codes During Start

A.1. PEI Beep Codes

Number of Beeps Description

4

Memory not Installed.

1

Memory was installed twice. (InstallPeiMemory routine in PEI Core called twice)

2

Recovery started.

3

DXEIPL was not found.

3

DXE Core Firmware Volume was not found.

4

Recovery failed.

4

S3 Resume failed.

7

Reset PPI is not available.

A.2. DXE Beep Codes

Number of Beeps Description

1

Invalid password.

4

Some of the Architectural Protocols are not available.

5

No Console Output Devices are found.

5

No Console Input Devices are found.

6

Flash update failed.

7

Reset protocol is not available.

8

Platform PCI resource requirements cannot be met.

Appendix B: Hazardous Material Disclosure

The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presence of small quantities of certain substances in the product and applies to RoHS II Directive (2015/863/EU).

ipcw rohs
